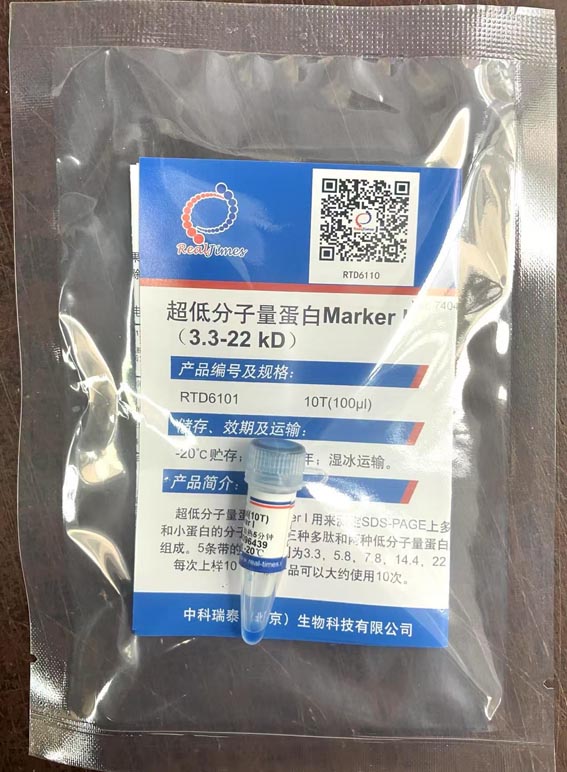

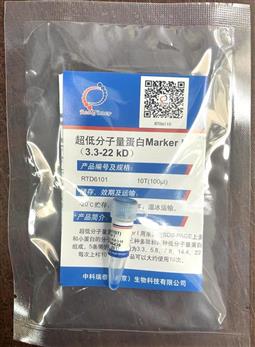

超低分子量蛋白Marker I(3.3-22KD)(非预染)

超低分子量蛋白Marker I(3.3-22KD)(非预染)

产品编号:RTD6101

产品规格:10次(100μl)

数量
价格 ¥200

超低分子量蛋白质Marker I3.3-22kD

Ultra Low Molecular Weight Protein Marker I

产品编号及规格:

RTD6101   10T100μl)   200元

 储存条件:

   -20保存,开封后有效期12个月。

 产品简介:

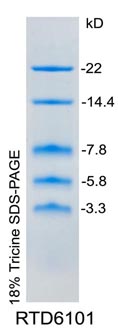

本产品包含3种多肽和2种低分子量蛋白质组成,分子量范围为3.3kD-22kD。可以用来判断 SDS-PAGE上多肽和小蛋白的分子量。


● 使用说明:

第一次收到该产品,常温融化后,彻底混匀,离心快甩将溶液完全收集到管底

. 制胶:

I 配制分离胶

1.按照表一将不同体积的双蒸水、40% PAA19:1)、4×凝胶缓冲液(货号:GB010)和乙二醇加入到小烧杯中混合。

2.加入10%APSTEMED,立即混匀5-10秒,以使溶液充分混匀。

3.在凝胶模具中迅速灌入适量分离胶溶液,然后在分离胶溶液上轻轻覆盖一层1 cm的无水乙醇,使凝胶表面保持平整。

4.静置15-30分钟,待分离胶和乙醇层之间出现一个清晰的界面表示凝胶已聚合。

表一  (一块1 mm mini胶用量)



分离胶

浓缩胶



18T, 5%C /5 ml

5T, 3.3%C/2 ml

40% PAA19:1

2.25 ml

/

40% PAA (29:1)

/

0.25 ml

4×凝胶缓冲液

1.25 ml

0.5 ml

乙二醇(电泳级)

1.5 ml

/

ddH2O

/

1.25ml

10APS

50 μl

20 μl

TEMED

5 μl

2 μl


II 配制浓缩胶

去除覆盖在分离胶上的乙醇层,用滤纸将残留乙醇吸去。

1.按照表一将不同体积的双蒸水、40%PAA(29:1)和4×凝胶缓冲液加入到小烧杯中混合。

2.加入10%过硫酸铵和TEMED,立即混匀5-10秒,以使溶液充分混匀。

3.将梳子插入凝胶内,避免产生气泡。

4.静置30-60分钟装待凝胶聚合

. 电泳:

1. Marker样品,充分混匀后,95℃处理5分钟。

2. 电泳前,将10×阳极缓冲液(Cat No:AB080)和10×阴极缓冲液(Cat No:CB010)用蒸馏水稀释成1×缓冲液备用。将电泳槽的外槽加入1×阳极缓冲液,内槽加入1×阴极缓冲液,轻柔拔出梳子,将Marker或蛋白样品(已经过2×Tricine上样缓冲液[Cat No:TP050]处理)加入点样孔,参考下表进行电泳,至每条带都清晰可见时停止电泳。整个电泳过程大约需要2-3个小时。

表二 多肽电泳条件

恒电压

150V

起始电流

60-75mA/板胶

结束电流

15-25mA/板胶

电泳时间

2.5-3小时




多肽电泳配套试剂

名称

货号

规格

超低分子量蛋白电泳试剂盒

RTD6120

10

超低分子量蛋白Marker I3.3-20.1 kD

RTD6101

10次(100 μl

超低分子量蛋白Marker III3.4-100 kD

RTD6125

10次(50 μl

彩虹预染超低分子量蛋白Marker1.2-45 kD

RTD6110

10 50 μl

  彩虹预染超低分子量蛋白Marker II3-40 kD

RTD6145-01

10 50 μl

40% PAA19:1

AC1914-01

100ml

40% PAA29:1

AC2914-01

100ml

多肽电泳凝胶缓冲液

GB010-100ml

100ml

2×Tricine 上样缓冲液(变性,还原)

TP050

10×1ml

FastBlue蛋白染色液

RTD6202

500ml

乙二醇(电泳级)

EA0582-02

100 ml

10×Tris-Tricine-SDS缓冲液(变性电泳,粉末型)

CB010P

500 ml

10×阳极缓冲液 (多肽电泳用

AB080

250 ml

10×阴极缓冲液(多肽电泳用)

CB010

100 ml




使用蛋白Marker产品发表部分文章列表:

1. [2021 IF=5.5] Garviecin LG34, a novel bacteriocin produced by Lactococcus garvieaeisolated from traditional Chinese fermented cucumber.

Author: Yurong Gao, Dapeng Li, Shan Liu, Liyuan Zhang

Marker: RTD6110,彩虹超低分子量蛋白Marker(1.2-45 kD)

Journal: Food Control 50 (2015) 896e900

Institution:Key Laboratory of Veterinary Medicine of Heilongjiang Bayi Agricultural University

Paper linkhttp://dx.doi.org/10.1016/j.foodcont.2014.10.040



2. [2021 IF=5.5] Purification and partial characterization of M1-UVs300, a novel bacteriocin produced by   isolated from fermented sausage Lactobacillus plantarum.

Author: Yu An, Ying Wang, Xiaoyue Liang, Huaxi Yi, Zhaohang Zuo, Xiaoxi Xu, Dongjie

Zhang, Changqing Yu, Xue Han

Marker: RTD6110,彩虹超低分子量蛋白Marker(1.2-45 kD)

Journal: Food Control  Volume 81, November 2017, Pages 211-217

Institution:Key Laboratory of Veterinary Medicine of Heilongjiang Bayi Agricultural University

Paper linkhttps://doi.org/10.1016/j.foodcont.2017.05.030



3. [2021 IF=5.75] The Verticillium dahliae SnodProt1-Like Protein VdCP1 Contributes to Virulence and Triggers the Plant Immune System.

Author: Yi Zhang, Yuhan Gao, Yingbo Liang, Yijie Dong, Xiufen Yang, Jingjing Yuan and Dewen Qiu

Marker: RTD6110,彩虹超低分子量蛋白Marker(1.2-45 kD)

Journal: Frontiers in Plant Science.  Volume 81, November 2017, Pages 211-217

InstitutionInstitute of Plant Protection, Chinese Academy of Agricultural Sciences

Paper linkhttps://doi.org/10.1093/jxb/ery351



4. [2021 IF=2.99] Purifcation, characterization, and action mechanism of plantaricin DL3, a novel bacteriocin against Pseudomonas aeruginosa produced by Lactobacillus plantarum DL3 from Chinese Suan Tsai.

Author: Xinran Lv,  Yang Lin ,Yu Jie, Mengtong Sun, Bolin Zhang,Fengling Bai,Hongfei Zhao,Jianrong Li

Marker: RTD6127,超低分子量蛋白Marker IV(3.3-45 kD)

Journal: European Food Research and Technology. Vol 244, pages 323–331 (2018)

InstitutionCollege of Biological Science and Biotechnology, Beijing Forestry University

Paper linkhttps://link.springer.com/article/10.1007/s00217-017-2958-3



5. [2021 IF=6.99] Verticillium dahliae Alt a 1-like protein PevD1 targets cotton PR5-like protein and contributes to fungal infection.

Author: Yi Zhang, Yuhan Gao, Yingbo Liang, Yijie Dong, Xiufen Yang, Dewen Qiu

Marker: RTD6110,彩虹超低分子量蛋白Marker (1.2-45 kD)

Journal: Journal of Experimental Botany, Vol 70, Issue 2, 15 January 2019,613-626

InstitutionInstitute of Plant Protection, Chinese Academy of Agricultural Sciences

Paper linkhttps://doi.org/10.1093/jxb/ery351



6. [2021 IF=11.277] An  Alternative  Splicing  Variant  of  PtRD26  Delays  Leaf  Senescence by Regulating Multiple NAC Transcription Factors in Populus.

Author: Hou-Ling Wang,Yi Zhang,Ting Wang, Qi Yang,Yanli Yang,Ze Li, Bosheng Li, Xing Wen, Wenyang Li, Weilun Yin, Xinli Xia, Hongwei Guo, and Zhonghai Li

Marker: RTD6110,彩虹预染超低分子量蛋白(1.2-45 kD)

Journal: Plant Cell. Volume 33, Issue 5, May 2021, Pages 1594–1614

InstitutionBeijing Advanced Innovation Center for Tree Breeding by Molecular Design, Beijing Forestry University

Paper linkhttps://doi.org/10.1093/plcell/koab046



7. [2021 IF=2.89] Rapid and sensitive detection ofStaphylococcus aureus and Klebsiella pneumonia based on bacitracin-modified Fe3O4@PDA magnetic beads combined with matrix-assisted laser desorption ionization-time of flight mass spectrometry.

Author: Feng Qin, Shujuan Wang, Mingxia Gao  and  Xiangmin Zhang

Marker: RTD6110,彩虹预染超低分子量蛋白(1.2-45 kD)

Journal: Analytical Methods. 2021,13, 2804-2811

InstitutionDepartment of Chemistry, Fudan University

Paper linkhttps://pubs.rsc.org/en/content/articlelanding/2021/ay/d1ay00614b



8. [2021 IF=3.74] Cloning, expression, and function of ferritins in the tick Haemaphysalis flava.

Author: Yu Zhao, Lei Liu, Jin-Bao Liu, Cong-Ying Wu, De-Yong Duan, Tian-Yin Cheng

Marker: RTD6142 高分子量非变性电泳蛋白质Marker II(45-669 kD)

Journal: Ticks and Tick-borne Diseases. Volume 13, Issue 2, March 2022, 101892

InstitutionCollege of Veterinary Medicine, Hunan Agricultural University,

Paper linkhttps://linkinghub.elsevier.com/retrieve/pii/S1877959X21002454



9. [2021 IF=0.886] Purification and Characterization of an Intracellular β-Glucosidase from the Protoplast Fusant of Aspergillus oryzae and Aspergillus niger

Author: F.M. Zhu, B. Du, H.S. Gao, C.J. Liu, and J. Lia

Marker: RTD6109 高分子量蛋白质Marker(43-200 kD)

Journal: Applied Biochemistry and Microbiology, 2010, Vol. 46, No. 6, pp. 626–632

InstitutionCollege of Food Science and Technology, Hebei Normal University of Science and Technology

Paper linkhttps://link.springer.com/article/10.1134/S0003683810060116



10. [2021 IF=4.374] Effect of Fuzhuan brick-tea addition on the quality and antioxidant activity of skimmed set-type yoghurt.

Author: Dong Liu

Marker: RTD6103 低分子量蛋白质Marker II(14.4-116 kD)

Journal: International Journal of Dairy Technology, Vol 71 March 2018 Pages 22-33

InstitutionDepartment of Food Processing Technology, Anqing Vocational & Technical College

Paper linkhttps://doi.org/10.1111/1471-0307.12395



11. [2021 IF=3.7] Smart delivery of poly-peptide composite for effective cancer therapy

Author: Xin Yuan, Yingzhou Qin, Qingmei Tian, Cuijuan Liu, Xiangzhou Meng, Bo Qie, Fan Gao, Ying Huang, Guanghui Xu, Guang Yang, Yimin Zhu

Marker: Protein Marker

Journal: Biomedical Materials, 2022 Jan 24;17(2)

Institution:School of Nano-Tech and Nano-Bionics, University of Science and Technology of China

Paper linkhttps://pubmed.ncbi.nlm.nih.gov/34996052/
